Products

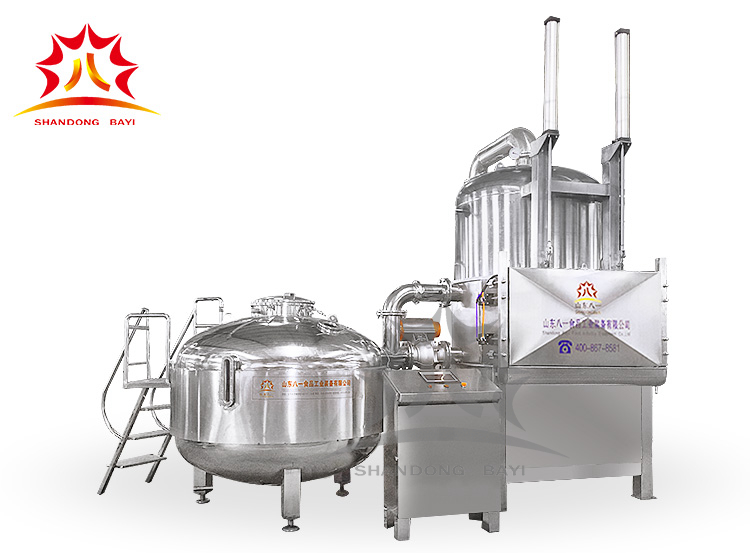

Steam Heating Vacuum Fryer

Steam heating, lower energy cost

Food grade stainless steel 304, safe and healthy

Siemens PLC control, operate easily

Heating fast, high vacuum degree

Tel:+86-13863658933 (WhatsApp/WeChat)

Email:sales@bayifryer.com

inquiry now

Introduction

What is Steam Heating Vacuum Frying?

Steam heating vacuum frying is a frying process below atmospheric pressure (~100kpa). At reduced pressure, the boiling point of oil and water is lower compared to atmospheric pressure. Palm oil as heat transfer medium and steam as the heating source to heat the oil indirectly, water will be evaporated from fruit and vegetable rapidly to achieve the purpose of drying.

Dure to a lower frying temperature, vacuum frying better preserves the nutritional value, aroma, and color of the fried product compared to atmospheric frying.

BAYI has developed the sixth-generation vacuum fryer successfully with multiple automatic functions. Electric heating vacuum fryer is made of vacuum chamber with de-oiling system, oil storage tank, oil circulation heating system, vacuum system, electric system, cooling supply system, pipelines and valves.

Advantage

① Food grade stainless steel，thickened frame without deformation

② BAYI special customized parts

③ Automatic valve control and install manual valve for backup

④ Multiple automatic functions. Lifting door, online control temperature/pressure and frying time, over-temperature alarm......

⑤ Heating fast and high vacuum degree. Vacuum system and heat exchange system designed reasonable and scientific

⑥ Operate easily, save manpower and protect personal safety

⑦ Process technology parameters could set and saved in PLC controller for different product.

⑧ Lower oil content. De-oiling process is carried out continuously in the vacuum chamber with adjusted speed.

Parameter

Model	BYZK-800	BYZK-1200	BYZK-1400	BYZK-1600
Size/mm	3600×3400×3300	4600×3600×4000	5000×3600×4000	5200×4000×4200
Basket Size/mm	Φ800×450	Φ1200×550	Φ1400×600	Φ1600×600
Basket volume	220L	620L	920L	1200L
Basket QTY	2	2	2	2
Heating Source	Steam	Steam	Steam	Steam
Power/kw	24	33	40	45
Vacuum Rate/Mpa	-0.095~-0.098	-0.095~-0.098	-0.095~-0.098	-0.095~-0.098
Frying Time	35~120min	35~120min	35~120min	35~120min
Frying TEMP	80~120℃	80~120℃	80~120℃	80~120℃
Capacity/h(maximal)	120kg	300kg	400kg	500kg
Oil capacity	900kg	1200kg	1500kg	1700kg
